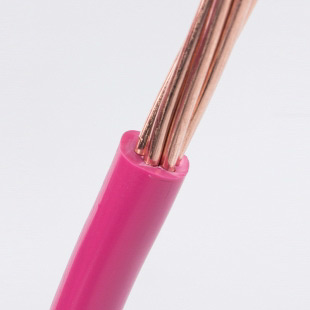

BV Solid Cable(ZR-BV、NH-BV)
Scope of application: This product is suitable for AC rated voltage of 450/750V and below. It is required to have fixed installation of electrician, instrument, telecommunication equipment, power device and lighting line for flame retardant occasions. Product features: Made of high quality oxygen-free copper and environmentally friendly PVC, the performance of the product
Application
This cable is suitable for AC rated voltage 450 / 750V and below, requiring flame occasions electrician, instrumentation, telecommunications equipment, power equipment and lighting circuit fixed laying.
Cables Features
1. Using high quality oxygen-free copper and environmental PVC for manufacturing, the performance indicators are in line with national standard: GB/T5023.3—2008/IEC60227—3:1997.
2. Acid and alkali resistance, oil resistance, moistureproof, mouldproof.
3. There are types: ordinary cable, flame-retardant cable, fire-resistant cable.
Ordinary cable: For distribution circuits of the residential, commercial construction and industry.(BV)
Flame-retardant cable: for preventing the spread of secondary fire.(ZR-BV、ZA-BV、ZB-BV、ZC-BV)
Fire-resistant cable: For firefighting system.(NH-BV)
Full name of BV Cable is Copper conductor PVC insulated wire , namely general purpose single-core hard conductor non-sheathed cable , which is an ordinary insulated wire used in our daily life, such as ordinary insulated wire, home cable, which is the most common type. Resistant to acids , oil, moisture , mold and so on.
According to sectional area of conductor, BV wire can be divided into three types: 01, 05, 07, all of these are with different features.
|
BV Category |
|||||
|
Model |
Scientific Name |
Insulation Material |
Introduction |
Nominal Voltage |
Usages |
|
60227IEC01(BV) |
Copper conductor PVC insulated wire |
PVC |
General purpose: single-core hard conductor cable non- sheath |
450/750V |
Power equipment, electrical appliances, instruments and telecom equipment |
|
60227IEC05(BV) |
Internal wiring of conductor temperature is 70 ℃ single-core solid conductor sheathed cable |
300/500V |
|||
|
60227IEC07(BV—90) |
Internal wiring of conductor temperature is 90 ℃ single-core solid conductor sheathed cable |
300/500V |
|||
According to different performances, BV cables can be classified as insulation cable, flame-retardant cable, fire-resistant cable.
|
BV Category |
|||||
|
Model |
Scientific Name |
Insulation Material |
Introduction |
Nominal Voltage |
Usages |
|
60227IEC01(BV) |
Copper conductor PVC insulated wire |
PVC |
General purpose: single-core hard conductor cable non- sheath |
450/750V |
Power equipment, electrical appliances, instruments and telecom equipment |
|
60227IEC05(BV) |
Internal wiring of conductor temperature is 70 ℃ single-core solid conductor sheathed cable |
300/500V |
|||
|
60227IEC07(BV—90) |
Internal wiring of conductor temperature is 90 ℃ single-core solid conductor sheathed cable |
300/500V |
|||
